IS916芯片数据恢复参数怎么设置？

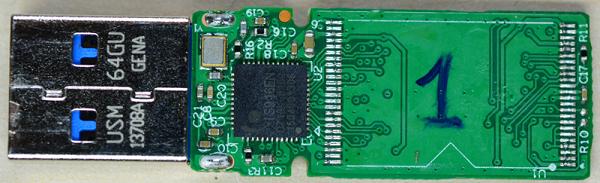

IS916 D6CN5 2c a8 09 df 2×2

Layout
  IS916 1142_24 Xor c1f6_384
Mix
  Input
    Order  2/3/0/1
  Block Pair
    Block  0x300000
    Page   0x2000
  Join by Page
    Parts  4
    Page   0x4000
Assembler
  Block Number
    Block Size   0x1800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xaaf
  Actions
    Scan
Comments
  Serg for forum 9545

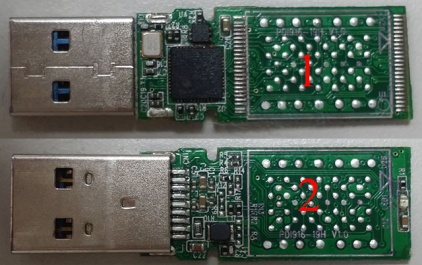

IS916 D61GR ec 3a d9 ce 2×1

Layout
  IS916 1146_24 Xor 49c1_192_128 v2
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x180000
    Page   0x2000
  Cross Dump
    Field  Block Number
    Parts  2
    Step   1
Assembler
  Block Number
    Block Size   0x300000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x2aab
    Mix          2/0x4000
  Actions
    Scan
Comments
  Serg for forum 9516

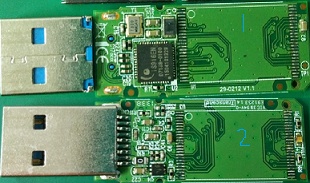

IS916 EN ec 3a d9 ce 2×2

Layout
  IS916 1146_24 Xor df3c_192_nsa
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x180000
    Page   0x2000
  Block Pair
    Block  0x200100000
    Page   0x4000
  Join by Page
    Parts  4
    Page   0x8000
Assembler
  Block Number
    Block Size   0x1800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xaaa
  Actions
    Scan
Comments
  Serg for forum 6718

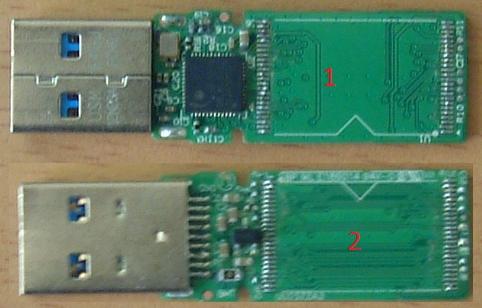

IS916EN 2c 84 64 3c 2×1

Layout
  IS917 1094_24 v4 Xor 3c58_512
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x800000
    Page   0x4000
  Cross Dump
    Field  Block Number
    Parts  2
    Step   1
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
    Mix          2/0x8000
  Actions
    Scan
Comments
  Serg for forum 9342

IS916EN 2c a4 e5 3c 1×2

Layout
  IS917 1094_24 v4 Xor 3c58_512
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x800000
    Page   0x4000
  Cross Dump
    Field  Block Number
    Parts  2
    Step   1
  Block Pair
    Block  0x400000000
    Page   0x1000000
  Cross Block
    Field  Block Number
    Block  0x1000000
    Parts  2
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xfff
    Mix          4/0x8000
  Actions
    Scan
Comments
  Serg for forum 9029

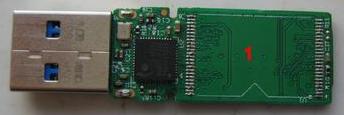

IS916EN 45 de 94 93 1×1

Layout
  IS916 1094_24 Xor 3c58_256 1
Mix
  Input
    Order  0
  Block Pair
    Block  0x400000
    Page   0x4000
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x3ff
  Actions
    Scan
Comments
  by Arvika
  check conflicts

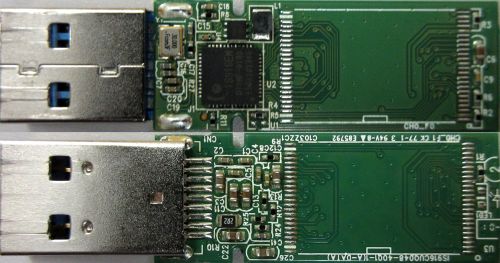

IS916EN 45 de a4 82 1×1

Layout
  IS916 1094_24 Xor 3c58_256 1
Mix
  Input
    Order  0
  Block Pair
    Block  0x200000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  by Arvika
  check conflicts

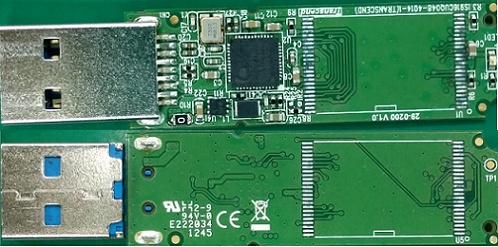

IS916EN 45 4c a8 92 1×1

Layout
  IS916 1130_24 Xor df3c_256
Mix
  Input
    Order  0
  Cut Bad Bytes
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Pair
    Block  0x408000
    Page   0x4000
  Block Cut
    Block  0x800000/0x10000
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 9551

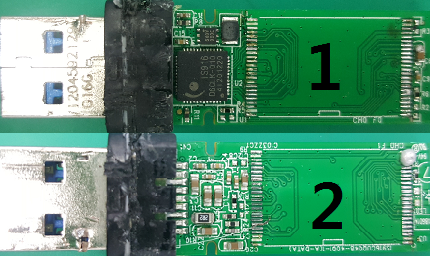

IS916EN 45 4c a8 92 2×1

Layout
  IS916 1130_24 Xor df3c_192
Mix
  Input
    Order  0/1
  Cut Bad Bytes
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Pair
    Block  0x408000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x8000
  Block Cut
    Block  0x1000000/0x20000
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 7257

IS916EN 45 d7 98 92 1×1

Layout
  IS916 1130_24 Xor df3c_256
Mix
  Input
    Order  0
  Cut Bad Bytes
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Cut
    Block  0x400000/0x8000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x3ff
  Actions
    Scan
Comments
  Serg for forum 7778

IS916EN 45 d7 98 92 1×1 v2

Layout
  IS916 1130_24 Xor df3c_256
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  258
    Group  2
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Cut
    Block  0x400000/0x8000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x3ff
  Actions
    Scan
Comments
  by Arvika
  SBB: Auto 2 same bytes + manual correction

IS916EN 89 84 64 3c 1×2

Layout
  IS917 1094_24 v4 Xor 3c58_512
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x800000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x1000000
  Cross Block
    Field  Block Number
    Block  0x1000000
    Parts  2
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
    Mix          2/0x8000
  Actions
    Scan
Comments
  Serg for forum 8462

IS916EN 98 3a a8 92 1×1

Layout
  IS916 1130_24 Xor df3c_256
Mix
  Input
    Order  0
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Pair
    Block  0x408000
    Page   0x4000
  Block Cut
    Block  0x800000/0x10000
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  by Arvika
  need cut bb manually before use this model

IS916EN 98 3a a8 92 1×2

Layout
  IS916 1130_24 Xor df3c_256
Mix
  Input
    Order  0/1
  Software Bad Bytes
    Block  258
    Group  4
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Pair
    Block  0x408000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x8000
  Block Cut
    Block   0x1000000/0x20000
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x4000
    Image Cut
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  by Arvika

IS916EN 98 3a a8 92 2×1

Layout
  IS916 1130_24 Xor df3c_256
Mix
  Input
    Order  0/1
  Software Bad Bytes
    Block  258
    Group  4
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Pair
    Block  0x408000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x8000
  Block Cut
    Block  0x1000000/0x20000
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
Comments
  Serg for forum 10797
  For bad bytes use Auto 2 same

IS916EN 98 3a a8 92 2×2

Layout
  IS916 1142_24 Xor df3c_258
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Pair
    Block  0x408000
    Page   0x4000
  Block Cut
    Block  0x800000/0x10000
  Cross Dump
    Field  Block Number
    Parts  4
    Step   1
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x1fff
    Mix          4 / 0x8000
  Actions
    Scan
Comments
  by Serg
  Dump had big red areas
  This give many conflicts at block_0
  Can skip them if scan with ECC = Check
  But need set Scan Max = 2
  to reduce scan time

IS916EN 98 d7 98 92 1×1

Layout
  IS916 1130_24 Xor df3c_256
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  258
    Group  2
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Cut
    Block  0x400000/0x8000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x3ff
  Actions
    Scan
Comments
  Serg for forum 11441
  To remove Bad Bytes use:
  Auto 2 Same Bytes

IS916EN 98 d7 98 92 1×1 v2

Layout
  IS916 1130_24 Xor df3c_256_nsa
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  258
    Group  2
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Cut
    Block  0x400000/0x8000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x3ff
  Actions
    Scan
Comments
  Serg for forum 12396

  Use Auto 2 same bytes to remove bb

IS916EN 98 de 98 92 1×1

Layout
  IS916 1130_24 Xor df3c_256_nsa
Mix
  Input
    Order  0
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Cut
    Block  0x400000/0x8000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Image Cut    0x400000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  by Arvika
  need cut bb manually before use this model

IS916EN 98 de 98 92 2×2

Layout
  IS916 1130_24 Xor df3c_256
Mix
  Input
    Order  2/3/0/1
  Block Pair
    Block  0x204000
    Page   0x2000
  Join by Page
    Parts  4
    Page   0x4000
  Block Cut
    Block  0x1000000/0x20000
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  by Arvika
  BB was cut manually in this case
  dump order could be other

IS916EN 98 de a4 82 1×1

Layout
  IS916 1094_24 Xor 3c58_256 1
Mix
  Input
    Order  0
  Block Pair
    Block  0x200000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x76b
  Actions
    Scan
Comments
  by Arvika
  check conflicts

IS916EN ad de 94 eb 1×1

Layout
  IS916 1100_24 Xor 3c58_256 q
Mix
  Input
    Order  0
  Block Pair
    Block  0x400000
    Page   0x4000
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x3ff
  Actions
    Scan
Comments
  Serg for forum 9335

IS916EN ad de 94 eb 2×1

Layout
  IS916 1094_24 I Xor 3c58_256
Mix
  Input
    Order  1/0
  Join by Page
    Parts  2
    Page   0x400000
  Cross Block
    Field  Block Number
    Block  0x400000
    Parts  2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xfff

    Mix          2/0x4000
  Actions
    Scan
Comments
  Serg for forum 7468

IS916EN ec 1a a8 de 2×2

Layout
  IS916 1146_24 Xor 8002_256
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x200000
    Page   0x2000
  Block Pair
    Block  0x400000
    Page   0x4000
  Join by Page
    Parts  4
    Page   0x8000
Assembler
  Block Number
    Block Size   0x2000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 6948

IS916EN ec 3a d9 ce 2×1

Layout
  IS916 1146_24 Xor df3c_192_nsa
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x180000
    Page   0x2000
  Block Pair
    Block  0x200100000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x8000
Assembler
  Block Number
    Block Size   0xc00000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xaab
  Actions
    Scan
Comments
  Serg for order 1029
  With ECC = Check, map was red
  With ECC = On, map was green
  Auto conflicts used

IS916EN ec 3a d9 ce 2×1 v2

Layout
  IS916 1146_24 Xor df3c_192
Mix
  Input
    Order  1/0
  Block Pair
    Block  0x180000
    Page   0x2000
  Block Pair
    Block  0x200100000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x8000
Assembler
  Block Number
    Block Size   0xc00000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xc664
  Actions
    Scan
Comments
  by mguy2019
  ECC better at 2.1v

IS916EN ec 3a d9 ce 2×2 v2

Layout
  IS916 1146_24 Xor df3c_192
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x180000
    Page   0x2000
  Block Pair
    Block  0x200100000
    Page   0x4000
  Join by Page
    Parts  4
    Page   0x8000
Assembler
  Block Number
    Block Size   0x1800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xaaa
  Actions
    Scan
Comments
  Serg for forum 7049

IS916EN ec 3a d9 de 2×2

Layout
  IS916 1146_24 Xor 8002_256
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x200000
    Page   0x2000
  Block Pair
    Block  0x200000000
    Page   0x4000
  Join by Page
    Parts  4
    Page   0x8000
Assembler
  Block Number
    Block Size   0x2000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 9341

IS916EN ec d7 98 ce 2×1

Layout
  IS916 1146_24 Xor df3c_192
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x180000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
Assembler
  Block Number
    Block Size   0x600000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x554
  Actions
    Scan
Comments
  Serg for forum 6754

IS916EN ec de 98 ce 1×1

Layout
  IS916 1146_24 Xor df3c_192
Mix
  Input
    Order  0
  Block Pair
    Block  0x180000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x300000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xaab
  Actions
    Scan
Comments
  Serg for order 1046

IS916EN ec de 98 ce 2×1

Layout
  IS916 1146_24 Xor df3c_192
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x180000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
Assembler
  Block Number
    Block Size   0x600000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xaaa
  Actions
    Scan
Comments
  Serg for forum 6051

IS916EN ec de 98 ce 2×2

Layout
  IS916 1146_24 Xor df3c_192
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x180000
    Page   0x2000
  Join by Page
    Parts  4
    Page   0x4000
Assembler
  Block Number
    Block Size   0xc00000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xaab
  Actions
    Scan
Comments
  Serg for forum 6503

IS916EN ec de 98 ce 2×2 v2

Layout
  IS916 1146_24 Xor df3c_192_nsa
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x180000
    Page   0x2000
  Join by Page
    Parts  4
    Page   0x4000
Assembler
  Block Number
    Block Size   0xc00000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xaab
  Actions
    Scan
Comments
  Serg for forum 8195

IS916EN ec de 98 de 2×1

Layout
  IS916 1146_24 Xor 8002_256
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 7660

IS916EN_v2 98 de 98 92 1×1

Layout
  IS916 1130_24 Xor df3c_256
Mix
  Input
    Order  0
  Block Pair
    Block  0x204000
    Page   0x2000
  Block Cut
    Block  0x400000/0x8000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Image Cut    0x400000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  by Arvika
  need cut bb manually before use this model

IS916 2c 68 04 4a 1×1

Layout
  IS916 1072_24 Xor 7f00_256
Mix
  Input
    Order  0
  Block Pair
    Block  0x100000
    Page   0x1000
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 6726

IS916 2c 68 04 4a 2×1

Layout
  IS916 1072_24 Xor c1f6_256
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x100000
    Page   0x1000
  Join by Page
    Parts  2
    Page   0x2000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 6464

IS916 2c 88 04 4b 2×2

Layout
  IS916 1072_24 Xor c1f6_256
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Page
    Parts  4
    Page   0x4000
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 7431

IS916 2c 88 08 5f 2×2

Layout
  IS916 1142_24 Xor f73c_192
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x300000
    Page   0x2000
  Cross Dump
    Field  Block Number
    Parts  4
    Step   1
Assembler
  Block Number
    Block Size   0x600000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x155f
    Mix          4 / 0x4000
  Actions
    Scan
Comments
  Serg for forum 10234

IS916 2c a8 05 cb 2×2

Layout
  IS916 1072_24 Xor c1f6_256
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Page
    Parts  4
    Page   0x4000
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xfff
  Actions
    Scan
Comments
  Serg for forum 7996

IS916 45 de 94 93 2×1

Layout
  IS916 1094_24 Xor f73c_128
Mix
  Input
    Order  0/1
  Join by Page
    Parts  2
    Page   0x400000
  Cross Block
    Field  Block Number
    Block  0x400000
    Parts  2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xfff
    Mix          2/0x4000
  Actions
    Scan
Comments
  Serg for forum 6859

IS916 45 de 98 92 2×1

Layout
  IS916 1130_24 Xor df3c_256_nsa
Mix
  Input
    Order  0/1
  Cut Bad Bytes
  Block Pair
    Block  0x204000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
  Block Cut
    Block  0x800000/0x10000
Assembler
  Virtual Translator
    Block Size  0x800000
Comments
  Serg for forum 11505

IS916 89 88 24 4b 2×1

Layout
  IS916 1072_24 Xor 01f6_256
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x800
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 7278
  Dump order can be other

IS916 89 88 24 4b 2×1 v2

Layout
  IS916 1108_24 Xor 7f00_256
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x400000
  Cross Block
    Field  Block Number
    Block  0x400000
    Parts  2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x9888
    Mix          2/0x4000
  Actions
    Scan
Comments
  Serg for forum 8442

IS916 89 88 24 4b 2×1 v3

Layout
  IS916 1108_24 Xor c1f6_256
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 9410

IS916 89 88 24 4b 2×2

Layout
  IS916 1072_24 Xor c1f6_256
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Page
    Parts  4
    Page   0x4000
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for case 5253

IS916 89 88 24 4b 2×2 v2

Layout
  IS916 1108_24 I Xor f73c_128
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Page
    Parts  4
    Page   0x4000
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 8123

IS916 98 de 94 82 2×1

Layout
  IS916 1094_24 I Xor 0040_256
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x400000
  Cross Block
    Field  Block Number
    Block  0x400000
    Parts  2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xfff
    Mix          2/0x4000
  Actions
    Scan
Comments
  Serg for forum 8508

IS916 ad de 94 d2 2×1

Layout
  IS916 1072_24 Xor f73c_128
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x400000
  Cross Block
    Field  Block Number
    Block  0x400000
    Parts  2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xfff
    Mix          2/0x4000
  Actions
    Scan
Comments
  Serg for forum 7579

IS916 ec d7 98 ce 1×1

Layout
  IS916 1146_24 Xor f73c_192
Mix
  Input
    Order  0
  Block Pair
    Block  0x180000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x300000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x555
  Actions
    Scan
Comments
  Serg for forum 7360

IS916 ec de 98 ce 1×1

Layout
  IS916 1146_24 Xor f73c_192
Mix
  Input
    Order  0
  Block Pair
    Block  0x180000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x300000
    Bank Space   0x4000
    Image Cut
    Banks        00 / 0x000 / 0xaaa
  Actions
    Scan
Comments
  by Arvika
  check conflicts

IS916 ec de 98 ce 1×1 v2

Layout
  IS916 1146_24 Xor 49c1_192_128 v2
Mix
  Input
    Order  0
  Block Pair
    Block  0x180000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x300000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xaab
  Actions
    Scan
Comments
  Serg for forum 8977

IS916 ec de 98 ce 2×1

Layout
  IS916 1146_24 Xor df3c_192_nsa
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x180000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
Assembler
  Block Number
    Block Size   0x600000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xaaa
  Actions
    Scan
Comments
  Serg for forum 6800

IS916 ec de 98 ce 2×1 v2

Layout
  IS916 1146_24 Xor f73c_192
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x180000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
Assembler
  Block Number
    Block Size   0x600000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0xaaa
  Actions
    Scan
Comments
  by Arvika
  check conflicts

IS916 ec de a4 7a 2×2

Layout
  IS916 1094_24 I Xor f73c_128
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x100000
    Page   0x2000
  Join by Page
    Parts  4
    Page   0x200000
  Cross Block
    Field  Block Number
    Block  0x200000
    Parts  4
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x3fff
    Mix          4/0x4000
  Actions
    Scan
Comments
  Serg for forum 7112
  Auto conflicts

常见问题解答

IS916 D6CN5的XOR值是多少？

根据文章内容，IS916 D6CN5的XOR值为c1f6_384，输入顺序为2/3/0/1，页面大小为0x2000，块大小为0x300000，页组合方式为4页拼接，块配对方式为块0x300000，区块大小为0x1800000。这些参数是进行数据恢复时的重要配置。

IS916 D61GR与D6CN5在参数上有哪些不同？

IS916 D61GR的XOR值为49c1_192_128 v2，输入顺序为0/1，块配对为0x180000，页面大小为0x2000，采用交叉转储字段，块编号部分为2步1，块大小为0x300000。与D6CN5相比，XOR值、输入顺序、块配对方式及区块大小均有差异，恢复时需分别配置。

IS916数据恢复时如何确定块大小和页大小？

文章指出，IS916的块大小和页大小根据具体芯片型号而定，例如D6CN5的块大小为0x300000，页大小为0x2000；D61GR的块大小也为0x300000，页大小同为0x2000。但块配对和页组合方式不同，需根据芯片ID和布局参数（如Layout IS916 1142_24或1146_24）来正确设置。

专业数据恢复，值得信赖

闪存芯片数据恢复，专业之选

芯片级恢复，精准高效

Oracle 数据库精准恢复

取证级数据提取

全球数据恢复实验室与取证团队的信赖之选

企业级数据安全保障

立即体验专业数据恢复工具

常见问题解答

IS916 D6CN5的XOR值是多少？

IS916 D61GR与D6CN5在参数上有哪些不同？

IS916数据恢复时如何确定块大小和页大小？

发表回复取消回复

需要专业数据恢复工具？

专业数据恢复，值得信赖

闪存芯片数据恢复，专业之选

芯片级恢复，精准高效

Oracle 数据库精准恢复

取证级数据提取

全球数据恢复实验室与取证团队的信赖之选

企业级数据安全保障

立即体验专业数据恢复工具

IS916芯片数据恢复参数怎么设置？

常见问题解答

IS916 D6CN5的XOR值是多少？

IS916 D61GR与D6CN5在参数上有哪些不同？

IS916数据恢复时如何确定块大小和页大小？

发表回复 取消回复

相关文章

需要专业数据恢复工具？

发表回复取消回复
