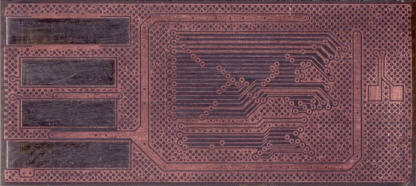

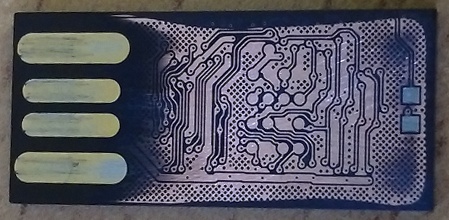

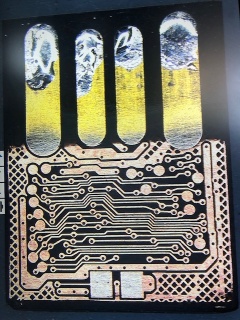

| Monolith USB 20-82-00515-5 45 3e 99 b3 1x1 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
20-82-00515-5 14_2048_230 Xor C634 16_2
Mix
Input
Order 0
Assembler
Sector Number Slow
Sector Size 0x1000
Comments
Serg for forum 10529

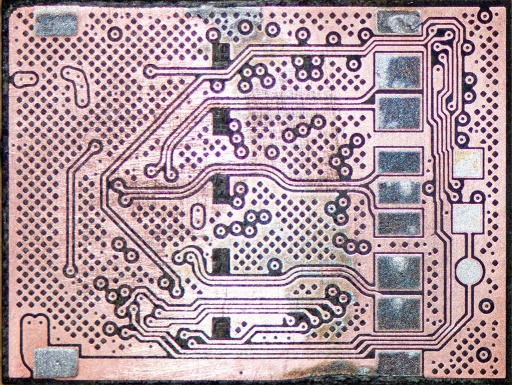

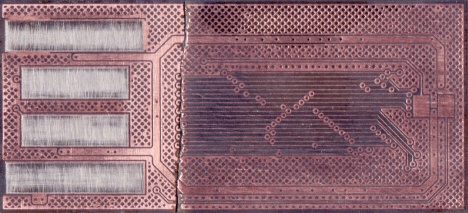

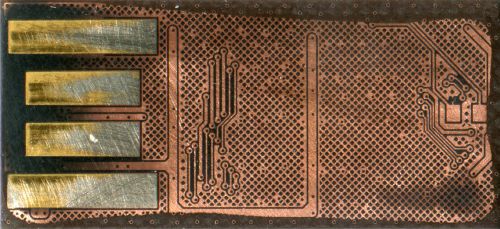

| Monolith USB 20 2c 88 08 5f 1x1 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
EN3257 1140 Xor 101d_256
Mix
Input
Order 0
Block Pair
Block 0x300000
Page 0x2000
Assembler
Block Number
Block Size 0x600000
Banks 00 / 0x000 / 0x0ff
01 / 0x000 / 0x0ff
02 / 0x000 / 0x0ff
03 / 0x000 / 0x0ff
04 / 0x000 / 0x0ff
Update Size 0x4000
Update Enable true
Actions
Scan
Comments
By JeremyB @ RecoverMyFlashDrive.com

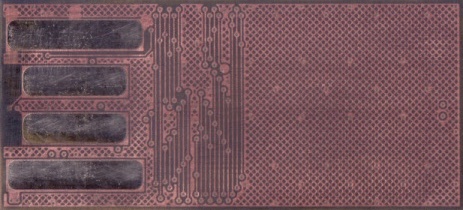

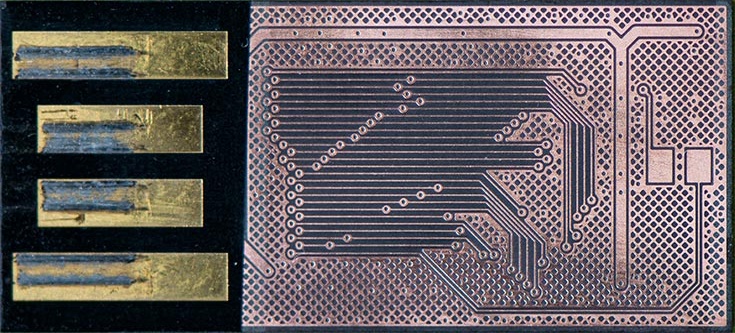

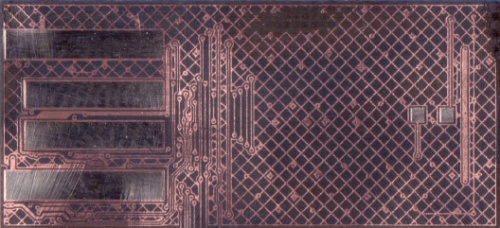

| Monolith USB AU 45 de a4 82 1x1 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
AU6983 1104 Xor 6771_256 d2
Mix
Input
Order 0
Block Cut
Block 0x0/0x2000/0x2000
Cross Bank
Block 0x100000
Bank 0x800
Assembler
Block Number
Block Size 0x100000
Bank Space 0x400
Actions
Scan
Find Bank Size
Comments
By Arvika
check conflicts

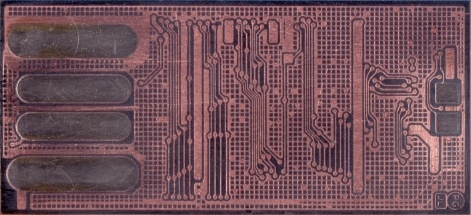

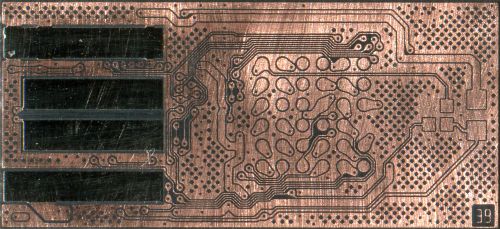

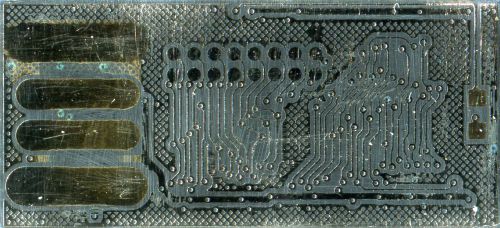

| Monolith USB CBM2093 2c 88 04 4b 1x1 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
CBM2093 1080 Xor 7421_256
Mix
Input
Order 0
Assembler
Translator Table
Block Size 0x200000
Actions
Scan
Find Bank Tables
Comments
By Arvika

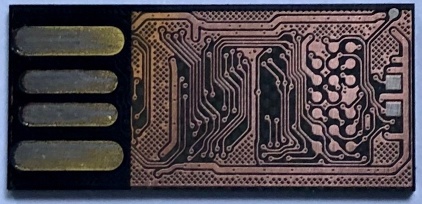

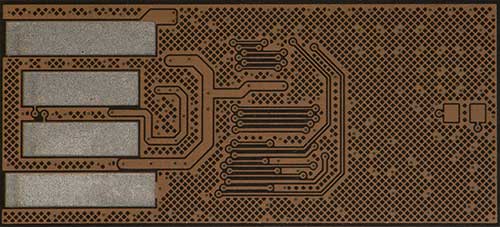

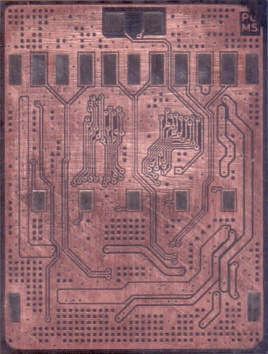

| Monolith USB CBM2098 98 3c 98 b3 1x1 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
CBM2098 1144 Xor c32e_64
Mix
Input
Order 0
Software Bad Bytes
Block 128
Group 1
Assembler
Virtual Translator
Block Size 0xc00000
Image Cut 0x27c000
Comments
Serg for forum 10662

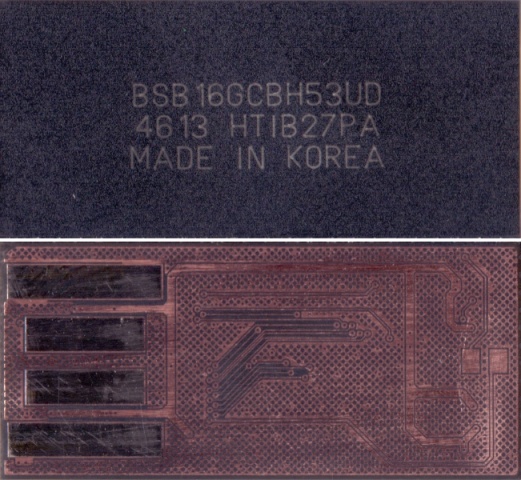

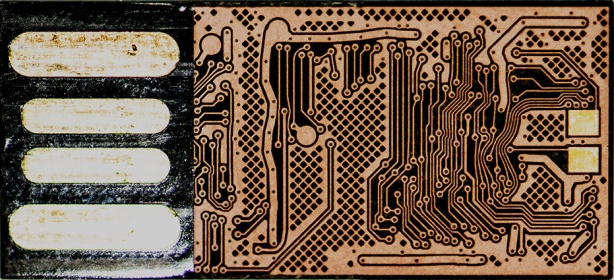

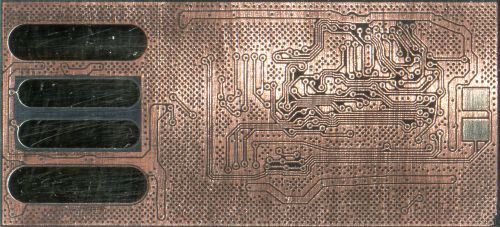

| Monolith USB IT1167 89 68 24 4a 2x1 |
|
Layout
IT1167 1086_1078 v2 Xor 6771_256
Mix
Input
Order 0/1
Block Pair
Block 0x100000
Page 0x1000
Divide
Field Block Number
Value 0x20
Join by Page
Parts 2
Page 0x200000
Cross Block
Field Block Number
Block 0x200000
Parts 2
Assembler
Block Number
Block Size 0x200000
Bank Space 0x4000
Image Cut 0xe7000
Banks 00 / 0x000 / 0xfff
Mix 2 / 0x200
Actions
Scan
Comments
by Arvika
| Monolith USB IT1167 89 68 24 4a 2x1 |
|
Layout
IT1167 1086_1078 v2 Xor 6771_256
Mix
Input
Order 0/1
Block Pair
Block 0x100000
Page 0x1000
Divide
Field Block Number
Value 0x20
Join by Page
Parts 2
Page 0x200000
Cross Block
Field Block Number
Block 0x200000
Parts 2
Assembler
Block Number
Block Size 0x200000
Bank Space 0x4000
Image Cut 0xe7000
Banks 00 / 0x000 / 0xfff
Mix 2 / 0x200
Actions
Scan
Comments
by Arvika

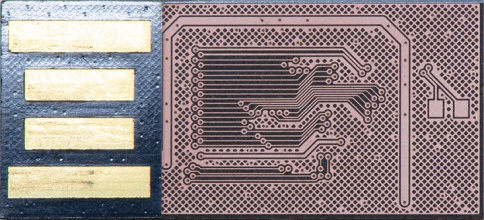

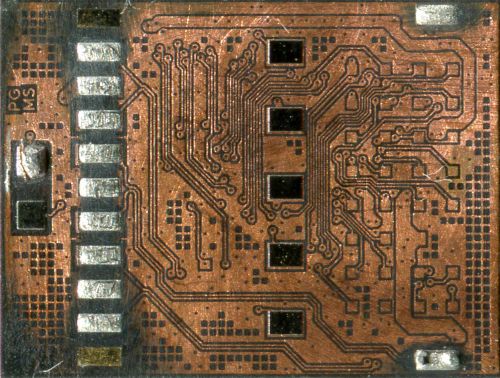

| Monolith USB IT1171 ec de 98 ce 1x2 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
IT1171 580_572 v2 Xor 6771_256
Mix
Input
Order 0/1
Block Pair
Block 0x180000
Page 0x2000
Divide
Field Block Number
Value 0x30
Cross Dump
Field Block Number
Parts 2
Step 1
Assembler
Block Number
Block Size 0x300000
Bank Space 0x4000
Image Cut 0x8c6200
Banks 00 / 0x000 / 0x1555
Mix 2 / 0x4000
Actions
Scan
Comments
Serg for forum 10951

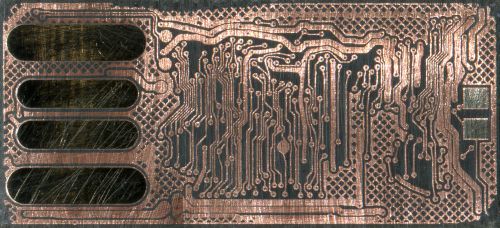

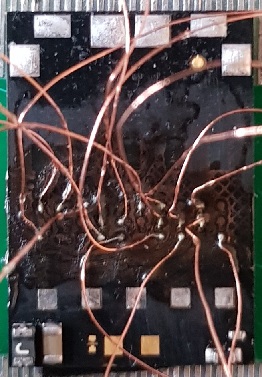

| Monolith USB IT1181 45 de 94 93 1x1 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
IT1181 556_548 Xor 6771_256
Mix
Input
Order 0
Software Bad Bytes
Block 256
Group 2
Block Pair
Block 0x400000
Page 0x4000
Divide
Field Block Number
Value 0x40
Assembler
Block Number
Block Size 0x800000
Bank Space 0x4000
Image Cut 0x7200
Banks 00 / 0x000 / 0x3cf
Actions
Scan
Comments
by Bolo
use Auto ff in Bad Bytes editor several times
on red places to cut all custom BB, after fix ECC
| Monolith USB PS2251-V 98 3a 98 a3 1x2 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
PS2251-V 1137_1129 Xor 0561_384_256
Mix
Input
Order 0/1
Join by Page
Parts 2
Page 0x4000
Block Renum
Block 0xc00000
Page 0x4000
Assembler
Block Number
Block Size 0xc00000
Bank Space 0x4000
Banks 00 / 0x000 / 0xfff
Actions
Scan
Comments
by Arvika
check conflicts
| Monolith USB PS2251-V 98 3a 98 a3 1x2 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
PS2251-V 1137_1129 Xor 0561_384_256
Mix
Input
Order 0/1
Join by Page
Parts 2
Page 0x4000
Block Renum
Block 0xc00000
Page 0x4000
Assembler
Block Number
Block Size 0xc00000
Bank Space 0x4000
Banks 00 / 0x000 / 0xfff
Actions
Scan
Comments
by Arvika
check conflicts
| Monolith USB SM2685 45 3a 94 93 1x1 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM2685 1102_27 Xor b36e_128 v5 Mod
Mix
Input
Order 0
Block Pair
Block 0x400000
Page 0x4000
Assembler
Block Number
Block Size 0x800000
Banks 00..07 / 0x000 / 0x0ff
Actions
Scan
Comments
By Arvika
| Monolith USB SM3254 2c 68 04 46 2x4 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3254 540_538
Mix
Input
Order 1/5/0/4/2/6/3/7
Join by Byte
Parts 2
Data false
Cross Bank
Block 0x200000
Bank 0x400
Join by Dump
Parts 4
Assembler
Block Number
Block Size 0x200000
Bank Space 0x400
Actions
Scan
Find Bank Size
Comments
Serg for forum 10302
There was little files
Dump order not verified
| Monolith USB SM3254 ec d5 14 b6 2x1 |
|
 wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3254 528
Mix
Input
Order 0/1
Join by Byte
Parts 2
Data false
Block Pair
Block 0x100000
Page 0x2000
Assembler
Block Number
Block Size 0x200000
Bank Space 0x400
Image Cut
Banks 00 / 0x000 / 0x3b8
01 / 0x000 / 0x3bf
Actions
Scan
Comments
By datafactory
|
|
|
|
|
|
|
|
| Monolith USB SM3257 45 4c 98 a3 1x2 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3257_41 1144_27 Xor 2850_384_256
Mix
Input
Order 1/0
Join by Page
Parts 2
Page 0x4000
Block Pair
Block 0xc00000
Page 0x8000
Assembler
Block Number
Block Size 0x1800000
Banks 0..1 / 0x000 / 0x0ff
Actions
Scan
Comments
JeremyB - Bit errors in NAND chip
| Monolith USB SM3257 98 3a a8 92 1x4 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3257_41 1130_27 Xor b36e_256 Mod
Mix
Input
Order 0/1/2/3
Cut Bad Bytes
Block Pair
Block 0x204000
Page 0x2000
Block Pair
Block 0x408000
Page 0x4000
Join by Page
Parts 2
Page 0x8000
Join by Dump
Parts 2
Assembler
Block Number
Block Size 0x1020000
Banks 0..15 / 0x000 / 0x0ff
Actions
Scan
Comments
Serg for forum 10927
MBR was missing
| Monolith USB SM3257 98 de 98 92 1x2 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3257 1146_27 Xor b36e_256
Mix
Input
Order 0/1
Cut Bad Bytes
Block Pair
Block 0x204000
Page 0x2000
Join by Page
Parts 2
Page 0x4000
Cut Bits
Field Bank Number
Mask 0xf0
Assembler
Block Number
Block Size 0x810000
Banks 0..7 / 0x000 / 0x0ff
Actions
Scan
Comments
By JeremyB
CE0 Read with no issues
CE1 Read by pulling CE0 high
Full Recovery
| Monolith USB SM3257 98 de 98 92 1x8 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3257 1146_27 Xor b36e_256
Mix
Input
Order 0/1/2/3/4/5/6/7
Cut Bad Bytes
Block Pair
Block 0x204000
Page 0x2000
Join by Page
Parts 4
Page 0x4000
Join by Dump
Parts 2
Assembler
Block Number
Block Size 0x1020000
Banks 0..15 / 0x000 / 0x0ff
Comments
By Recover My Flash Drive (jeremyb)
CE would arbitrarily pull LOW on banks with NR
CE0 read green, CE1-7 read red
Solution manually pull CE0-7 HIGH/LOW with v3.3/GND
on respective banks then CE1-7 read 70% green with RR
| Monolith USB SM3257 98 de 98 92 2x4 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3257 1144_27 Xor b36e_256
Mix
Input
Order 0/1/2/3/5/4/6/7
Cut Bad Bytes
Block Pair
Block 0x204000
Page 0x2000
Join by Page
Parts 4
Page 0x4000
Join by Dump
Parts 2
Assembler
Block Number
Block Size 0x1020000
Banks 00..15 / 0x000 / 0x0ff
Actions
Scan
Comments
by Arvika
| Monolith USB SM3257 ad 3a 18 03 1x1 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3257_41 1150_27 Xor 2850_384_256
Mix
Input
Order 0
Block Pair
Block 0x600000
Page 0x4000
Assembler
Block Number
Block Size 0xc00000
Banks 0..5 / 0x000 / 0x0ff
Actions
Scan
Comments
Serg for forum 10692
| Monolith USB SM3257 ad de 94 da 1x1 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3257 1094_27 Xor b36e_128 Mod
Mix
Input
Order 0
Block Pair
Block 0x200000
Page 0x2000
Assembler
Block Number
Block Size 0x400000
Image Cut
Banks 00 / 0x000 / 0x0ff
01 / 0x000 / 0x0ff
02 / 0x000 / 0x0ff
03 / 0x000 / 0x0ff
04 / 0x000 / 0x0ff
05 / 0x000 / 0x0ff
06 / 0x000 / 0x0ff
07 / 0x000 / 0x079
Actions
Scan
Comments
By datasave
| Monolith USB SM3257 ec 1a 88 1f 1x4 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3257_41 1150_27 Xor 8e3d_384
Mix
Input
Order 2/0/3/1
Join by Page
Parts 4
Page 0x4000
Block Pair
Block 0x1800000
Page 0x10000
Assembler
Block Number
Block Size 0x3000000
Banks 0..10 / 0x000 / 0x0ff
Actions
Scan
Comments
Serg for forum 10462
| Monolith USB SM3257 ec 3a 98 bf 1x4 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3257_41 1150_27 Xor 809f_256
Mix
Input
Order 1/0/2/3
Join by Page
Parts 4
Page 0x4000
Block Pair
Block 0x1000000
Page 0x10000
Assembler
Block Number
Block Size 0x2000000
Banks 0..7 / 0x000 / 0x0ff
Actions
Scan
Comments
Serg for forum 10545
| Monolith USB SM3257 ec de 88 bf 1x4 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3257 1150_27 Xor b36e_256 F
Mix
Input
Order 0/1/2/3
Join by Page
Parts 4
Page 0x4000
Assembler
Block Number
Block Size 0x1000000
Banks 0..7 / 0x000 / 0x0ff
Actions
Scan
Comments
Serg for forum 10421
| Monolith USB SM3257 ec de 98 de 1x2 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3257_41 1148_27 Xor b36e_256
Mix
Input
Order 0/1
Block Pair
Block 0x200000
Page 0x2000
Join by Page
Parts 2
Page 0x4000
Assembler
Virtual Translator
Block Size 0x800000
Comments
Serg for forum 10835
Many blocks have ff in SA
Virtual Translator give better result
then Block Number assembler
| Monolith USB SM3259 45 4c 98 a3 1x1 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3259_41 1144_31 Xor 17fe_256 bb
Mix
Input
Order 0
Block Pair
Block 0x600000
Page 0x4000
Assembler
Block Number
Block Size 0xc00000
Banks 0..5 / 0x000 / 0x0ff
Actions
Scan
Comments
Serg for forum 10771
| Monolith USB SM3259 45 4c a8 92 1x1 |
|
wS6flash extractor芯片数据恢复软件 oracle extractor数据库修复软件
Layout
SM3259_41 1142_31 Xor 17fe_258 bb
Mix
Input
Order 0
Block Pair
Block 0x204000
Page 0x2000
Block Pair
Block 0x408000
Page 0x4000
Assembler
Block Number
Block Size 0x810000
Banks 0..7 / 0x000 / 0x0ff
Actions
Scan
Comments
Serg for forum 10544
