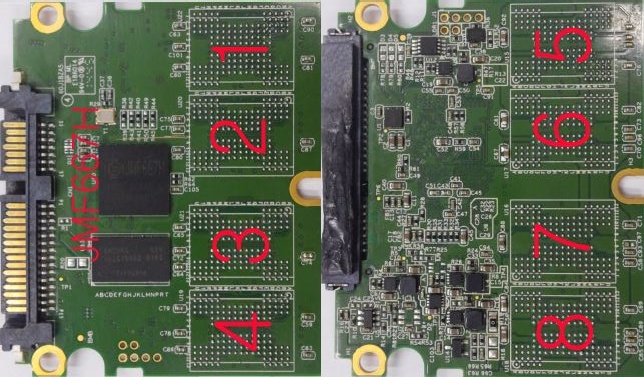

JMF667H   89 84 64 3c   2x4   Ch7flash extractor   Layout JMF667 1098 t04 Xor 0A46_256 Mix Input Order 0/1/2/3/4/5/6/7 Block Pair Block 0x800000 Page 0x4000 Join by Dump Parts 8 Assembler Block Table Scan Block 0x1000000 Table Offset 0xff8000 Data Block 0x1000 Actions Scan Comments Serg for forum 8010 Many conflicts Need save image And use any scan software

Layout
  JMF667 1098 t08 Xor 0A46_256
Mix
  Input
    Order  0/1/2/3/4/5/6/7/8/9/10/11/12/13/14/15
  Block Pair
    Block  0x800000
    Page   0x4000
  Join by Dump
    Parts  16
Assembler
  Block Table
    Scan Block    0x1000000
    Table Offset  0xff8000
    Data Block    0x1000
  Actions
    Scan
Comments
  Serg for forum 8576

Layout
  JMF667 1070 Xor 0A46_256
Mix
  Input
    Order  12/5/11/4/14/7/6/9/8/1/13/0/10/3/15/2
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Dump
    Parts  16
Assembler
  Block Table
    Scan Block    0x400000
    Table Offset  0x3fc000
    Data Block    0x1000
  Actions
    Scan
Comments
  Serg for forum 8010
  Made for LBA pattern dumps
  There was strange thing
  77 pattern places had green ECC
  LBA pattern places had red ECC

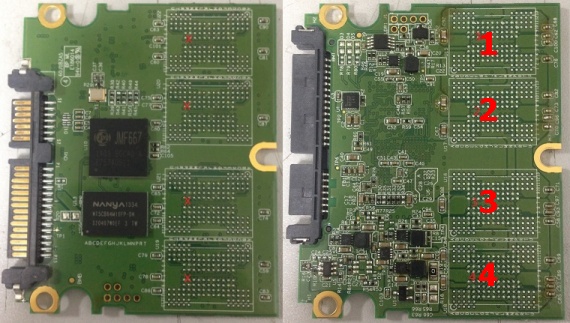

Layout
  JMF667 1098 t02 Xor 0A46_256
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x800000
    Page   0x4000
  Join by Dump
    Parts  4
Assembler
  Block Table
    Scan Block    0x1000000
    Table Offset  0xff8000
    Data Block    0x1000
  Actions
    Scan
Comments
  Serg for forum 8326
