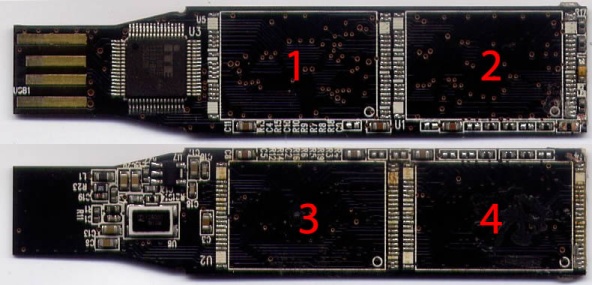

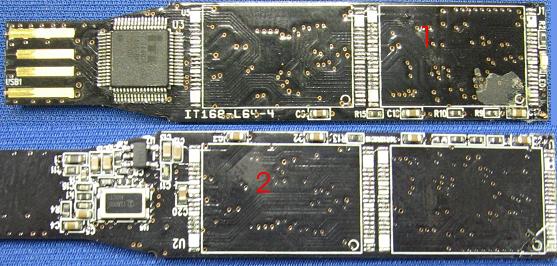

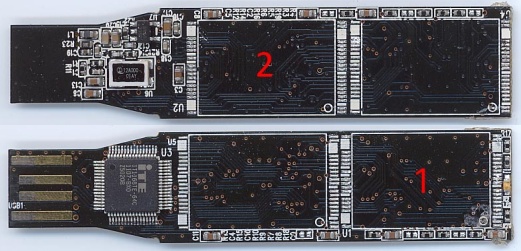

| IT1168TE-64C 2c 68 04 46 4x1 |
|
 eoxflash extractor
Layout
IT1168 546_538
Mix
Input
Order 1/2/0/3
Block Pair
Block 0x100000
Page 0x1000
Divide
Field Block Number
Value 0x40
Join by Page
Parts 4
Page 0x200000
Cross Block
Field Block Number
Block 0x200000
Parts 4
Assembler
Block Number
Block Size 0x200000
Bank Space 0x4000
Image Cut 0xce000
Banks 00 / 0x000 / 0x1fff
Mix 4/0x200
Actions
Scan
Comments
Serg for forum 7143 |
eoxflash extractoreoxflash extractor
| IT1168TE-64C 2c 88 04 4b 4x1 |
|
eoxflash extractor
Layout
IT1167 1086_1078
Mix
Input
Order 1/2/3/0
Block Pair
Block 0x200000
Page 0x2000
Join by Page
Parts 4
Page 0x400000
Divide
Field Block Number
Value 0x80
Cross Block
Field Block Number
Block 0x400000
Parts 4
Assembler
Block Number
Block Size 0x400000
Bank Space 0x40000
Image Cut 0xcc000
Banks 00 / 0x000 / 0x1fff
Mix 2 / 0x200
2 / 0x8000
Actions
Scan
Comments
Serg for forum 6431eoxflash extractor
| IT1168TE-64C 89 d7 94 3e 2x4 |
|
Layout
IT1168 1078_1070
Mix
Input
Order 0/4/1/5/2/6/3/7
Divide
Field Block Number
Value 0x40
Block Pair
Block 0x80000
Page 0x1000
Join by Page
Parts 8
Page 0x100000
Cross Block
Field Block Number
Block 0x100000
Parts 8
Assembler
Block Number
Block Size 0x100000
Bank Space 0x8000
Image Cut 0xcc000
Banks 00 / 0x000 / 0x7fff
Mix 2/0x200
4/0x4000
Actions
Scan
Comments
Serg for order from friend
|
|
|
|
eoxflash extractoreoxflash extractor
| IT1168TE-64C ad d5 94 25 4x1 |
|
eoxflash extractor
Layout
IT1168 546_538
Mix
Input
Order 1/2/3/0
Block Pair
Block 0x80000
Page 0x1000
Join by Page
Parts 4
Page 0x100000
Divide
Field Block Number
Value 0x20
Cross Block
Field Block Number
Block 0x100000
Parts 4
Assembler
Block Number
Block Size 0x100000
Bank Space 0x2000
Image Cut 0xdf000
Banks 00 / 0x000 / 0x1fff
Mix 2/0x200
2/0x4000
Actions
Scan
Comments
Serg for forum 7281eoxflash extractoreoxflash extractor
| IT1168TE-64C ad d7 94 9a 2x1 |
|
 eoxflash extractor
Layout
IT1167 1086_1078
Mix
Input
Order 0/1
Block Pair
Block 0x200000
Page 0x2000
Divide
Field Block Number
Value 0x40
Cross Dump
Field Block Number
Parts 2
Step 1
Assembler
Block Number
Block Size 0x400000
Bank Space 0x4000
Image Cut 0xdf000
Banks 00 / 0x000 / 0x7ff
Mix 2/0x200
Actions
Scan
Comments
Serg for forum 8558 |
eoxflash extractoreoxflash extractor
| IT1168TE-640 2c 88 04 4b 2x1 |
|
eoxflash extractor
Layout
IT1167 1086_1078
Mix
Input
Order 0/1
Block Pair
Block 0x200000
Page 0x2000
Divide
Field Block Number
Value 0x40
Join by Page
Parts 2
Page 0x400000
Cross Block
Field Block Number
Block 0x400000
Parts 2
Assembler
Block Number
Block Size 0x400000
Bank Space 0x1000
Image Cut 0xce000
Banks 00 / 0x000 / 0xfff
Mix 2/0x200
Actions
Scan
Comments
Serg for forum 5817
Layout
IT1167 1086_1078
Mix
Input
Order 3/0/1/2
Block Pair
Block 0x200000
Page 0x2000
Join by Page
Parts 4
Page 0x400000
Divide
Field Block Number
Value 128
Cross Block
Field Block Number
Block 0x400000
Parts 4
Assembler
Block Number
Block Size 0x400000
Bank Space 0x40000
Banks 00 / 0x000 / 0x1fff
Mix 2 / 0x200
2 / 0x8000
Actions
Scan
Comments
Serg
MBR & FAT was absent in dumps
Layout
IT1168 546_538
Mix
Input
Order 4/0/5/1/6/2/7/3
Block Pair
Block 0x100000
Page 0x1000
Join by Page
Parts 8
Page 0x200000
Divide
Field Block Number
Value 0x80
Cross Block
Field Block Number
Block 0x200000
Parts 8
Assembler
Block Number
Block Size 0x200000
Bank Space 0x10000
Image Cut 0xec000
Mix
2 / 0x200
4 / 0x4000
Actions
Scan
Find Bank Size
Comments
by Vlad 05.05.2011 for Zenin A.
Perfect Recovery
Layout
IT1168 546_538
Mix
Input
Order 4/6/0/2/5/7/1/3
Block Pair
Block 0x100000
Page 0x1000
Join by Page
Parts 8
Page 0x200000
Divide
Field Block Number
Value 128
Cross Block
Field Block Number
Block 0x200000
Parts 8
Assembler
Block Number
Block Size 0x200000
Bank Space 0x4000
Image Cut 0x754000
Mix
4 / 0x200
2 / 0x8000
Actions
Scan
Find Bank Size
|
|
|
|
| |
 eoxflash extractor
Layout
IT1168 546_538
Mix
Input
Order 8/12/0/4/9/13/1/5/10/14/2/6/11/15/3/7
Block Pair
Block 0x100000
Page 0x1000
Join by Page
Parts 16
Page 0x200000
Divide
Field Block Number
Value 256
Cross Block
Field Block Number
Block 0x200000
Parts 16
Assembler
Block Number
Block Size 0x200000
Bank Space 0x10000
Image Cut 0xfc8000
Mix
4 / 0x200
4 / 0x8000
Actions
Scan
Find Bank Size
Comments
By Vladus 01.03.2011 for customer service case 497
Some conflicts
|
|
|
| IT1168 89 68 04 46 4x4 v2 |
|
eoxflash extractor
Layout
IT1168 546_538
Mix
Input
Order 0/4/12/8/1/5/13/9/2/6/14/10/3/7/15/11
Block Pair
Block 0x100000
Page 0x1000
Divide
Field Block Number
Value 0x100
Cross Dump
Field Block Number
Parts 16
Step 1
Assembler
Block Number
Block Size 0x200000
Bank Space 0x40000
Banks 00 / 0x000 / 0x7fff
Mix 4 / 0x200
4 / 0x8000
Actions
Scan
Comments
Serg for forum 10271
eoxflash extractor
Layout
IT1167 1086_1078 Xor 6771_512_BN
Mix
Input
Order 0/2/1/3
Block Pair
Block 0x200000
Page 0x2000
Join by Page
Parts 4
Page 0x400000
Divide
Field Block Number
Value 128
Cross Block
Field Block Number
Block 0x400000
Parts 4
Assembler
Block Number
Block Size 0x400000
Bank Space 0x40000
Image Cut 0xae0000
Banks 00 / 0x000 / 0x1fff
Mix 2 / 0x200
2 / 0x8000
Actions
Scan
Comments
Serg for forum 4316
Use this model only with ECC = ON
Layout
IT1167 1086_1078 Xor 6771_512_BN
Mix
Input
Order 0/4/1/5/2/6/3/7
Block Pair
Block 0x200000
Page 0x2000
Join by Page
Parts 8
Page 0x400000
Divide
Field Block Number
Value 256
Cross Block
Field Block Number
Block 0x400000
Parts 8
Assembler
Block Number
Block Size 0x400000
Bank Space 0x4000
Image Cut 0x184e000
Mix 2/0x200
4/0x8000
Actions
Scan
Find Bank Size
Comments
by Vlad 29.08.2011 for forum 4420
Perfect Recovery
| IT1168 89 88 24 4b 2x4 v2 |
|
eoxflash extractor
Layout
IT1167 1086_1078 Xor 6771_512_BN
Mix
Input
Order 0/4/1/5/2/6/3/7
Block Pair
Block 0x200000
Page 0x2000
Join by Page
Parts 8
Page 0x400000
Divide
Field Block Number
Value 0x100
Cross Block
Field Block Number
Block 0x400000
Parts 8
Assembler
Block Number
Block Size 0x400000
Bank Space 0x4000
Image Cut 0x1746200
Banks 00 / 0x000 / 0x3fff
Mix 2/0x200
4/0x8000
Actions
Scan
Comments
Serg for forum 7480
Layout
IT1168 546_538
Mix
Input
Order 0/4/1/5/2/6/3/7
Block Pair
Block 0x80000
Page 0x1000
Join by Page
Parts 8
Page 0x100000
Divide
Field Block Number
Value 0x40
Cross Block
Field Block Number
Block 0x100000
Parts 8
Assembler
Block Number
Block Size 0x100000
Bank Space 0x10000
Image Cut 0xec000
Mix
2 / 0x200
4 / 0x4000
Actions
Scan
Find Bank Size
Layout
IT1168 546_538
Mix
Input
Order 8/12/0/4/9/13/1/5/10/14/2/6/11/15/3/7
Block Pair
Block 0x100000
Page 0x1000
Join by Page
Parts 16
Page 0x200000
Divide
Field Block Number
Value 256
Cross Block
Field Block Number
Block 0x200000
Parts 16
Assembler
Block Number
Block Size 0x200000
Bank Space 0x10000
Image Cut 0xfc8000
Mix
4 / 0x200
4 / 0x8000
Actions
Scan
Find Bank Size
Layout
IT1168 546_538
Mix
Input
Order 0/4/8/12/1/5/9/13/2/6/10/14/3/7/11/15
Block Pair
Block 0x80000
Page 0x1000
Join by Page
Parts 16
Page 0x100000
Divide
Field Block Number
Value 0x80
Cross Block
Field Block Number
Block 0x100000
Parts 16
Assembler
Block Number
Block Size 0x100000
Bank Space 0x10000
Image Cut 0xe8000
Mix
4 / 0x200
4 / 0x8000
Actions
Scan
Find Bank Size
|
Layout
IT1168 1078_1070
Mix
Input
Order 0/2/1/3
Block Pair
Block 0x100000
Page 0x2000
Join by Page
Page 0x200000
Parts 4
Divide
Field Block Number
Value 64
Cross Block
Field Block Number
Block 0x200000
Parts 4
Assembler
Block Number
Block Size 0x200000
Bank Space 0x20000
Image Cut 0xef000
Mix
2 / 0x200
2 / 0x8000
Actions
Scan
Find Bank Size
Comments
Serg 2011.2.4 from forum 3694
Check files was perfect
But some is broken
I think cause of FAT table problems
 eoxflash extractor
Layout
IT1168 546_538
Mix
Input
Order 1/2/0/3
Block Pair
Block 0x80000
Page 0x1000
Join by Page
Parts 4
Page 0x100000
Divide
Field Block Number
Value 0x20
Cross Block
Field Block Number
Block 0x100000
Parts 4
Assembler
Block Number
Block Size 0x100000
Bank Space 0x2000
Image Cut 0xdf000
Banks 00 / 0x000 / 0x1fff
Mix 4/0x200
Actions
Scan
Comments
by Vlad
perfect recovery |
