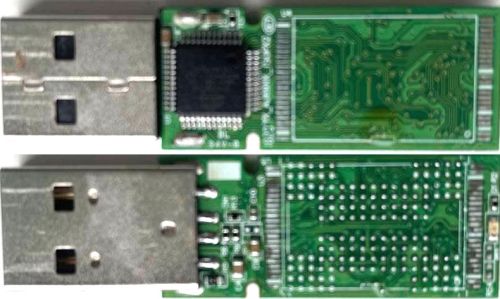

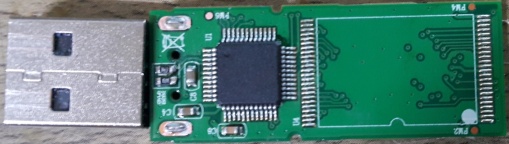

AU6998

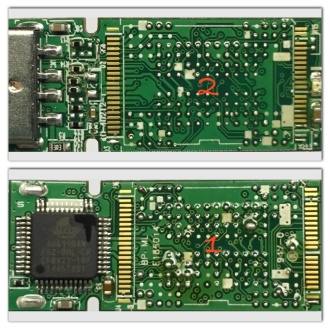

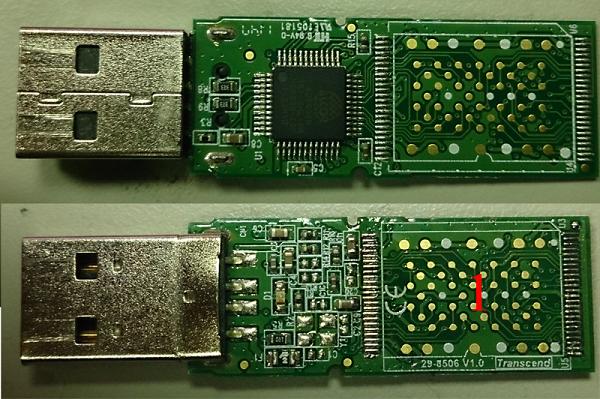

6998SN 89 a4 64 32 2x1

Layout
  AU6989 1152 Xor 6771_256
Mix
  Input
    Order  1/0
  Cross Bank
    Block  0x1000000
    Bank   0x400
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 11673

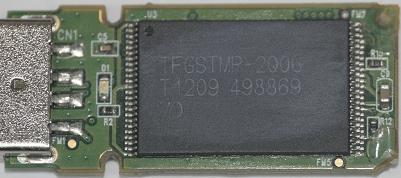

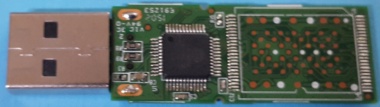

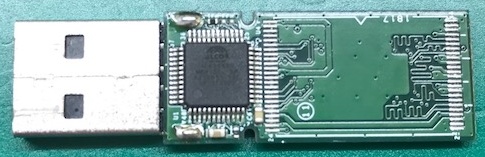

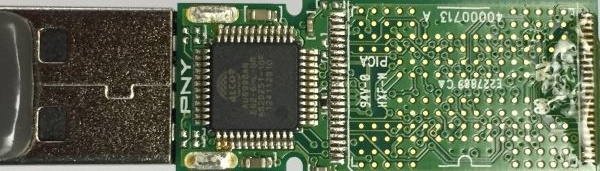

6998SN 98 3a 98 a3 1x1

Layout
  AU6998 1138 Xor 6771_384_128 aECC
Mix
  Input
    Order  0
  Block Cut
    Block  0x0/0x600000/0x600000
Assembler
  Block Number
    Block Size   0x600000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x4e6
  Actions
    Scan
    Read Bank Size
Comments
  by Arvika
  device refurbished, only odd blocks was used
  check conflicts

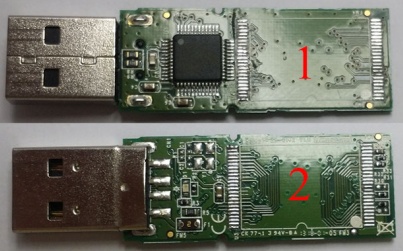

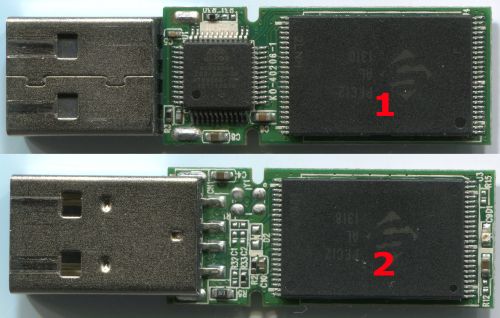

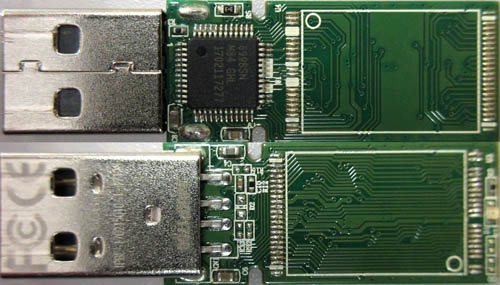

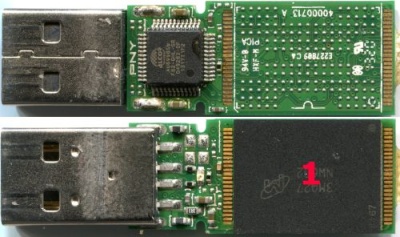

AU6998AN 2c 64 44 4b 2x1

Layout
  AU6983 1104
Mix
  Input
    Order  1/0
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 7264
  Dump order can be other

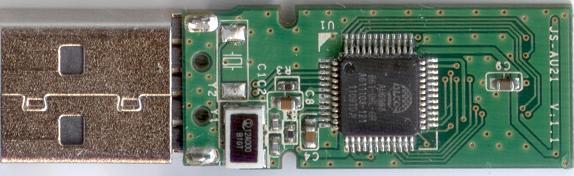

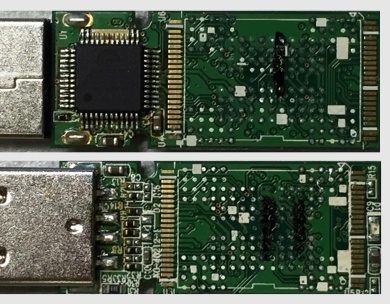

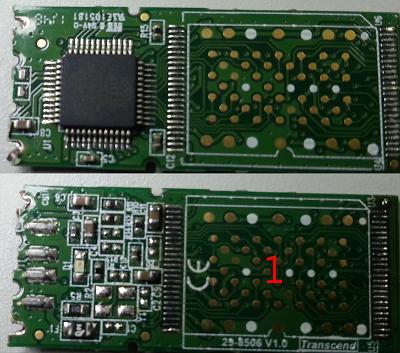

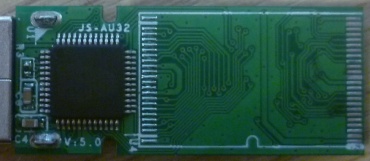

AU6998AN 2c 64 44 4b 2x1

Layout
  AU6983 1104
Mix
  Input
    Order  1/0
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 7264
  Dump order can be other

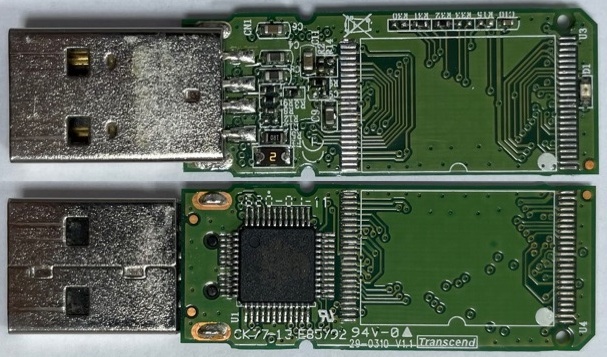

AU6998AN 2c 64 44 4b 2x2

Layout
  AU6983 1104
Mix
  Input
    Order  2/3/0/1
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Dump
    Parts  4
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  by Arvika

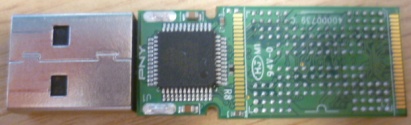

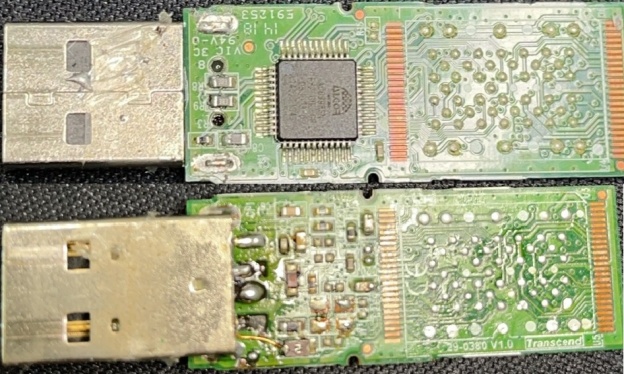

AU6998AN 2c 68 04 4a 2x2

Layout
  AU6990 1070 m40
Mix
  Input
    Order  2/0/3/1
  Join by Byte
    Parts  2
    Data   false
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x800
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 6515

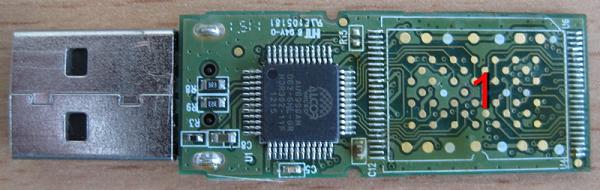

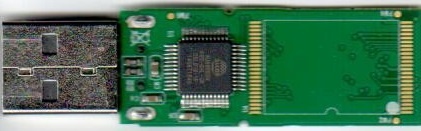

AU6998AN 2c 84 64 3c 1x1

Layout
  AU6998 1096
Mix
  Input
    Order  0
  Cross Bank
    Block  0x800000
    Bank   0x400
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 7310

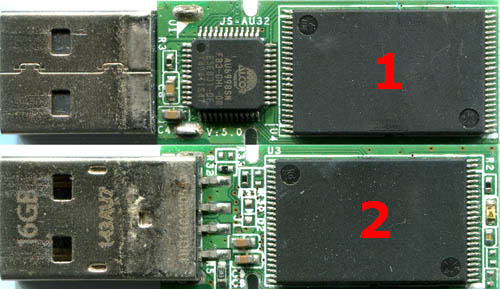

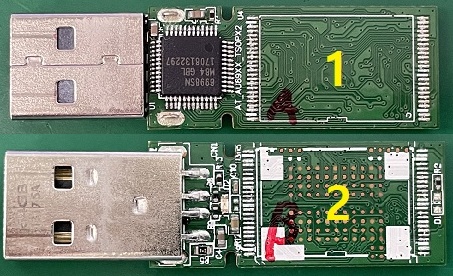

AU6998AN 2c 84 64 3c 2x1

Layout
  AU6998 1096
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x800000
    Page   0x4000
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 8287

AU6998AN 2c 84 64 3c 2x2

Layout
  AU6998 1096
Mix
  Input
    Order  3/2/1/0
  Block Pair
    Block  0x800000
    Page   0x4000
  Join by Dump
    Parts  4
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  by Pcimage

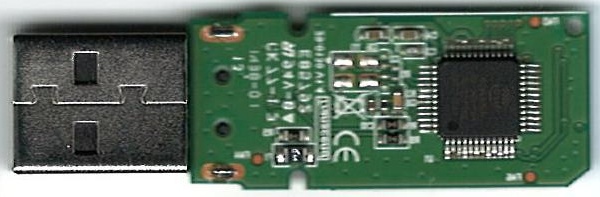

AU6998AN 2c 84 64 54 2x1

Layout
  AU6983 1104
Mix
  Input
    Order  1/0
  Cross Bank
    Block  0x800000
    Bank   0x418
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x418
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 8431

  Bank space fixed 11.05.2011
  Due to change number of blocks in config
  May be this is wrong

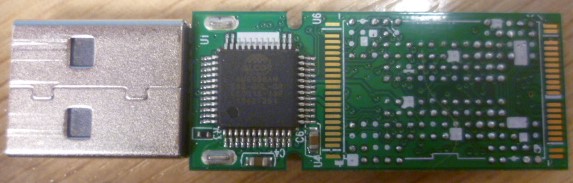

AU6998AN 45 68 95 32 2x4

Layout
  AU6990 1070 Xor 6771_128
Mix
  Input
    Order  4/0/5/1/6/2/7/3
  Join by Byte
    Parts  2
    Data   false
  Block Pair
    Block  0x200000
    Page   0x4000
  Join by Dump
    Parts  4
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 5595

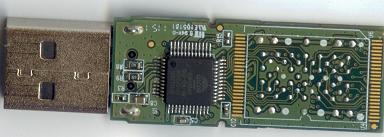

AU6998AN 89 84 64 3c 1x4

Layout
  AU6998 1096
Mix
  Input
    Order  0/2/1/3
  Block Pair
    Block  0x800000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x8000
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x2000000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 7179

AU6998AN 89 88 24 4b 1x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  0
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 9442

AU6998AN 89 88 24 4b 1x2

Layout
  AU6990 1070 m40
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 8515

AU6998AN ec de 98 ce 1x4

Layout
  AU6989 1146 Xor 6771_256
Mix
  Input
    Order  0/1/2/3
  Block Pair
    Block  0x180000
    Page   0x2000
  Join by Page
    Parts  2
    Page   0x4000
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x600000
    Bank Space   0x556
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 6171

AU6998N ec 3a d9 ce 1x1

Layout
  AU6989 1146 Xor 6771_256
Mix
  Input
    Order  0
  Block Pair
    Block  0x180000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x300000
    Bank Space   (0x800/0x2ab)*2
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 6246

AU6998N ec d7 98 ce 1x1

Layout
  AU6989 1146 Xor 6771_256
Mix
  Input
    Order  0
  Block Pair
    Block  0x180000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x300000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x555
  Actions
    Scan
Comments
  Serg for forum 5967

AU6998N ec de d5 7a 2x2

Layout
  AU6983 1104 Xor 6771_128
Mix
  Input
    Order  2/0/3/1
  Join by Byte
    Parts  2
    Data   false
  Block Pair
    Block  0x200000
    Page   0x4000
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
  Actions
    Scan
    Find Bank Size
    Read Bank Size
Comments
  Serg for forum 5357

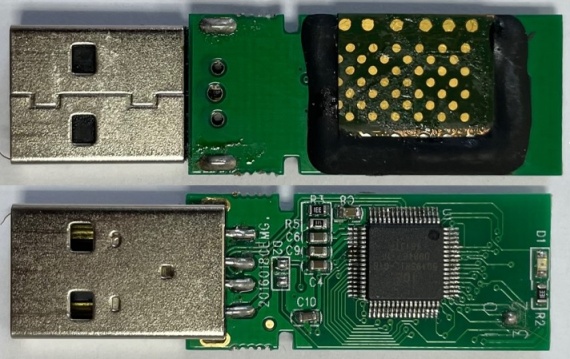

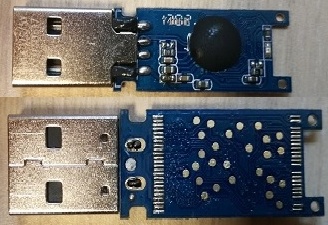

AU6998SNHL ec de a4 32 1x1

Layout
  AU6983 1104 Xor 6771_128
Mix
  Input
    Order  0
  Block Pair
    Block  0x100000
    Page   0x2000
  Block Pair
    Block  0x200000
    Page   0x4000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
  Actions
    Scan
    Read Bank Size
Comments
  by Vladus COB Conflicts Auto

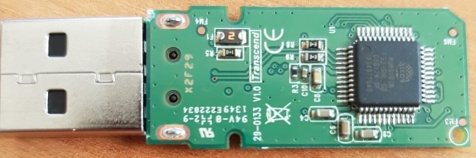

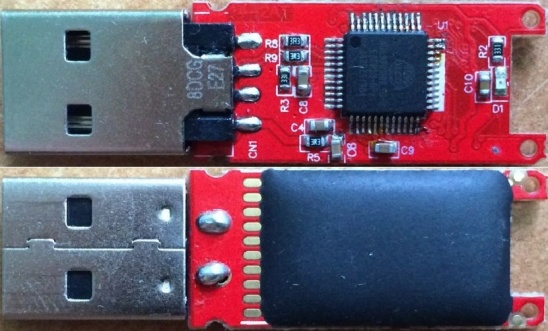

U6998SN 2c 44 44 4b 1x1

Layout
  AU6998 1096
Mix
  Input
    Order  0
  Block Pair
    Block  0x200000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
    Banks        00 / 0x000 / 0x3ff
  Actions
    Scan
Comments
  by Arvika
  check conflicts

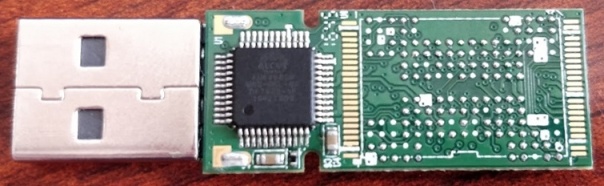

AU6998SN 2c 64 44 4b 1x1

Layout
  AU6983 1104
Mix
  Input
    Order  0
  Block Pair
    Block  0x200000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  by Arvika
  check conflicts

AU6998SN 2c 68 04 4a 1x1

Layout
  AU6990 1070 m40
Mix
  Input
    Order  0
  Block Pair
    Block  0x100000
    Page   0x1000
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x4000
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 8805

AU6998SN 2c 84 48 63 1x1

Layout
  AU6989 1152 Xor 6771_768_256 BP aECC
Mix
  Input
    Order  0
  Block Pair
    Block  0x600000
    Page   0x2000
Assembler
  Block Number
    Block Size   0xc00000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x564
  Actions
    Scan
Comments
  Serg for forum 11994

AU6998SN 2c 84 64 3c 1x1

Layout
  AU6998 1096 Xor 6771_256
Mix
  Input
    Order  0
  Cross Bank
    Block  0x800000
    Bank   0x400
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x635
  Actions
    Scan
    Find Bank Size
Comments
  by Arvika
  first need cut BB manually
  this case have damaged dir structure
  save image, scan any software

AU6998SN 2c 84 64 3c 1x1 v2

Layout
  AU6998 1096
Mix
  Input
    Order  0
  Block Pair
    Block  0x800000
    Page   0x4000
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x400
    Banks        00 / 0x000 / 0x3ff
  Actions
    Scan
Comments
  by Arvika
  check conflicts

AU6998SN 2c 84 64 3c 1x2

Layout
  AU6998 1096 Xor 6771_256
Mix
  Input
    Order  0/1
  Cross Bank
    Block  0x800000
    Bank   0x400
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  Serg for order 1655

AU6998SN 2c 84 64 54 1x1

Layout
  AU6998 1138 Xor 6771_256
Mix
  Input
    Order  0
  Cross Bank
    Block  0x800000
    Bank   0x418
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x418
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 8714

  Bank space fixed 11.05.2011
  Due to change number of blocks in config
  May be this is wrong

AU6998SN 2c 84 64 54 1x1 Ref

Layout
  AU6998 1138 Xor 6771_256
Mix
  Input
    Order  0
  Block Mutate
    Block  0x8ea000
    Cut    0/0x8ea0/0x11d40/0x4750/0x8b00f0/0x8ea0/0x11d40
  Block Cut
    Block  0x7ec000/0x14000
Assembler
  Block Number
    Block Size   0x7ec000
    Bank Space   0x400
    Banks        00 / 0x000 / 0x3a6
  Actions
    Scan
Comments
  by Arvika
  refurbished device
  Split by Block 0x8ea000
  Create folder Split_0, Split_1
  Put new dumps in this folders
  Copy FE folder here
  for Split_0 use above model
  for Split_1 change mix steps to:
    Block Mutate
      Block  0x8ea000
      Cut    0/0x8ea0/0x11d40/0xd5f0/0xd5f0/0x8ea0/0x87f080/0x8ea0/0x8ea0/0xd5f0
/0xd5f0
    Block Cut
      Block  0x7d0000/0x30000
  Assembler
    Block Number
      Block Size   0x7d0000
      Bank Space   0x400
      Banks        00 / 0x000 / 0x3ad
  Save Disk0.image and Disk1.image
  Join by dump Disk0 and Disk1 to Final.image
  Structure ok, check dirs aligned
  RAW scan give ~90% good photos, 2GB movie files was ok
  Little data was broken
  Additional scan on Final.image give more data

AU6998SN 2c a4 64 32 1x2

Layout
  AU6989 1152
Mix
  Input
    Order  0/1
  Join by Dump
    Parts  2
  Cross Bank
    Block  0x2000000
    Bank   0x200
  Cross Bank
    Block  0x1000000
    Bank   0x200
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x200
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 10096

AU6998SN 45 3a a4 93 1x1

Layout
  AU6998 1110 Xor 6771_256
Mix
  Input
    Order  0
  Cross Bank
    Block  0x800000
    Bank   0x400
  Cross Bank
    Block  0x400000
    Bank   0x400
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 11443

AU6998SN 45 3c a6 82 1x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  0
  Cross Bank
    Block  0x200000
    Bank   0x844
  Swap Blocks
    Block  0x211000000
    Order  0/2/1/3
Assembler
  Block Number
    Block Size   0x200000
    Bank Space   0x844
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 12607

AU6998SN 45 de 94 93 1x1

Layout
  AU6983 1104 Xor 6771_256
Mix
  Input
    Order  0
  Cross Bank
    Block  0x400000
    Bank   0x400
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 8514

AU6998SN 89 84 64 3c 1x2

Layout
  AU6998 1096
Mix
  Input
    Order  1/0
  Block Pair
    Block  0x800000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x8000
Assembler
  Block Number
    Block Size   0x2000000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x3ff
  Actions
    Scan
Comments
  Serg for forum 7307

AU6998SN 89 a4 64 32 1x1

Layout
  AU6998 1138 Xor 6771_256
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  1024
    Group  4
  Cross Bank
    Block  0x1000000
    Bank   0x800
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x800
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  by Arvika
  device is refurbished, one plane is broken and not use by flash at all
  Software BB: Auto ff
  Check conflicts

AU6998SN 89 a4 64 32 1x1 v2

Layout
  AU6989 1162 Xor 6771_256
Mix
  Input
    Order  0
  Cross Bank
    Block  0x2000000
    Bank   0x224
  Cross Bank
    Block  0x1000000
    Bank   0x224
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x224
  Actions
    Scan
    Read Bank Size
Comments
  Serg for forum 12578

AU6998SN 98 3a 98 a3 1x1

Layout
  AU6989 1146 Xor 6771_128 aECC
Mix
  Input
    Order  0
  Cross Bank
    Block  0x600000
    Bank   0x5d3
Assembler
  Block Number
    Block Size   0x600000
    Bank Space   0x800
  Actions
    Scan
    Find Bank Size
Comments
  by Arvika
  FAT32 damaged, need rebuild manually
  or save image and use any recovery software
  Cross bank could have value 0x5a5 for NR config

AU6998SN 98 de 94 93 2x1

Layout
  AU6998 1096 Xor 6771_256
Mix
  Input
    Order  1/0
  Software Bad Bytes
    Block  256
    Group  2
  Cross Bank
    Block  0x400000
    Bank   0x400
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x400
  Actions
    Scan
    Read Bank Size
Comments
  by Arvika
  SBB: Auto 2 Same Bytes + manual corrections

AU6998SN ec 1a a8 de 1x1

Layout
  AU6998 1148 Xor 6771_512 aECC Mod
Mix
  Input
    Order  0
  Block Pair
    Block  0x200000
    Page   0x2000
  Block Pair
    Block  0x400000
    Page   0x4000
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 12238

AU6998SN ec 1a a8 de 1x2

Layout
  AU6989 1152 Xor Xor 6771_512 v2
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x200000
    Page   0x2000
  Block Pair
    Block  0x400000
    Page   0x4000
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x800000
    Bank Space   0x4000
  Actions
    Scan
    Find Bank Size
Comments
  Serg for forum 8102

AU6998SN ec d7 98 ce 1x1

Layout
  AU6989 1152 Xor 6771_768_256
Mix
  Input
    Order  0
  Block Pair
    Block  0x200000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x3ff
  Actions
    Scan
Comments
  Serg for forum

AU6998SN ec de 98 de 2x1

Layout
  AU6989 1152 Xor 6771_256
Mix
  Input
    Order  1/0
  Block Pair
    Block  0x200000
    Page   0x2000
  Join by Dump
    Parts  2
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x800
  Actions
    Scan
    Find Bank Size
Comments
  Good recovery by book14!

AU6998 2c 88 04 4b 2x2

Layout
  AU6990 1070 m40
Mix
  Input
    Order  2/0/3/1
  Join by Byte
    Parts  2
    Data   false
  Block Pair
    Block  0x400000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x8000
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x800
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Serg for forum 6256

AU6998 45 de 94 93 1x2

Layout
  AU6998 1096 Xor 6771_256
Mix
  Input
    Order  0/1
  Block Pair
    Block  0x400000
    Page   0x4000
  Join by Page
    Parts  2
    Page   0x8000
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x400
    Image Cut    0x400000
    Banks        00 / 0x000 / 0x396
                 01 / 0x000 / 0x3aa
                 02 / 0x000 / 0x3b2
                 03 / 0x000 / 0x3b1
  Actions
    Scan
Comments
  by Serg & Bolo
  Correct MBR and FAT manually

AU6998 45 d7 98 82 1x1

Layout
  AU6989 1146 Xor 6771_256
Mix
  Input
    Order  0
  Cut Bad Bytes
  Block Pair
    Block  0x204000
    Page   0x2000
Assembler
  Block Number
    Block Size   0x408000
    Bank Space   0x400
    Banks        00 / 0x000 / 0x3ff
  Actions
    Scan
Comments
  Serg for forum 6469

AU6998 89 a4 64 32 1x1

Layout
  AU6989 1152 Xor 6771_256
Mix
  Input
    Order  0
  Cross Bank
    Block  0x1000000
    Bank   0x400
Assembler
  Block Number
    Block Size   0x1000000
    Bank Space   0x400
  Actions
    Scan
    Find Bank Size
Comments
  By HelpDisc

上一篇：AU6996
下一篇： AU8910

站内搜索

联系我们
